HD-Series

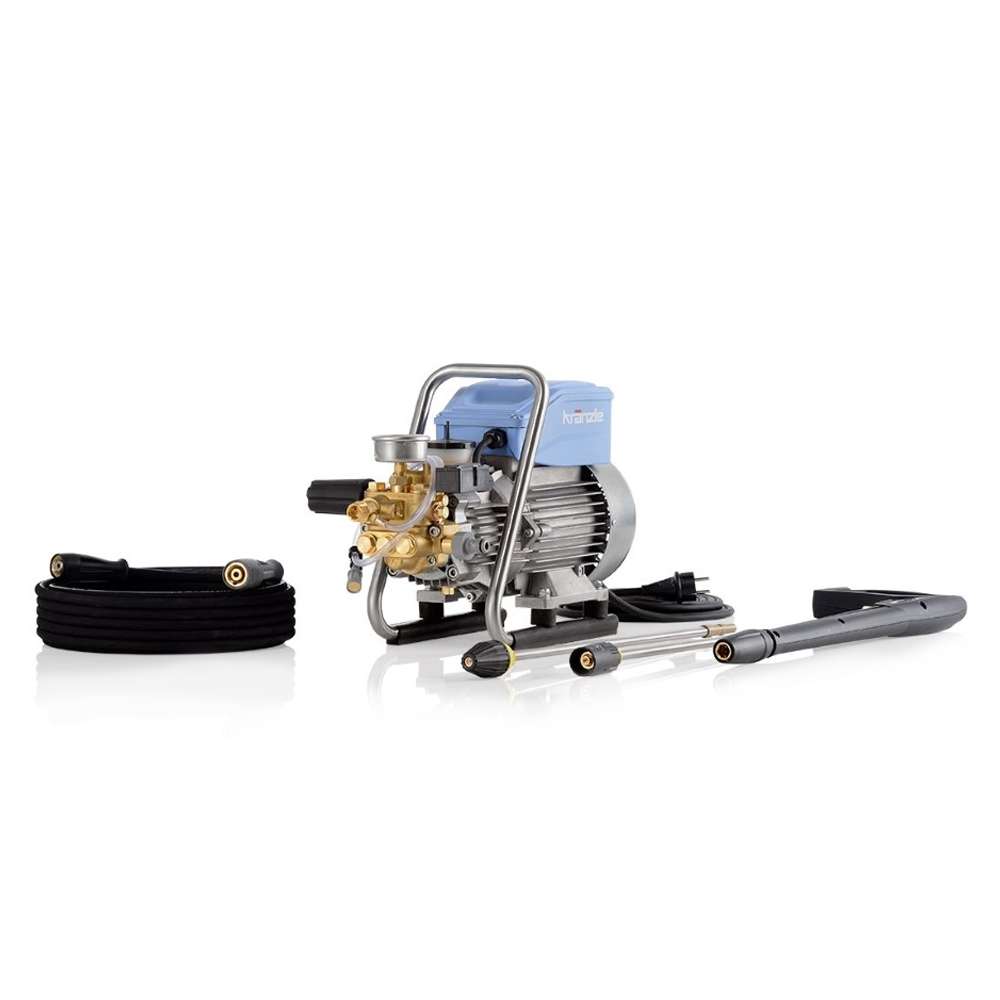

Kranzle HD 7/122 DK

TECHNICAL SPECIFICATIONS
Operating pressure bar | MPa30-120 | 3-12
Water output l/min | l/h7 | 420
Admissible overpressure bar | MPa135 | 13.5
Motor speed Rpm1400
Connection V | ~ | Hz | AkW
Power intake | Power output kWm
Power supply cable m5
Dimensions L x W x H mm440 | 200 | 330
Weight kg23

ราคา

ปกติ

33,300.-

ลด

21,900.-

Kranzle HD 7/122 TS DK

TECHNICAL SPECIFICATIONS
Operating pressure bar | MPa30-120 | 3-12
Water output l/min | l/h7 | 420
Admissible overpressure bar | MPa135 | 13.5
Motor speed Rpm1400
Connection V | ~ | Hz | AkW
Power intake | Power output kWm
Power supply cable m5
Dimensions L x W x H mm440 | 200 | 330
Weight kg23


ราคา

ปกติ

36,900.-

ลด

24,100.-

Kranzle HD 10/122 DK

TECHNICAL SPECIFICATIONS
Operating pressure bar | MPa30-120 | 3-12
Water output l/min | l/h10 | 600
Admissible overpressure bar | MPa135 | 13.5
Motor speed Rpm2800
Connection V | ~ | Hz | A230 | 1 | 50 | 11
Power intake | Power output kW2.5 | 1.8
Power supply cable m5
Dimensions L x W x H mm440 | 200 | 330
Weight kg23

ราคา

ปกติ

33,300.-

ลด

21900.-

Kranzle HD 10/122 TS DK

TECHNICAL SPECIFICATIONS
Operating pressure bar | MPa30-120 | 3-12
Water output l/min | l/h10 | 600
Admissible overpressure bar | MPa135 | 13.5
Motor speed Rpm2800
Connection V | ~ | Hz | A230 | 1 | 50 | 11
Power intake | Power output kW2.5 | 1.8
Power supply cable m5
Dimensions L x W x H mm440 | 200 | 330
Weight kg23


ราคา

ปกติ

34,200.-

ลด

24,100.-

Kranzle HD 9/80 L

TECHNICAL SPECIFICATIONS
Operating pressure bar | MPa30-80 | 3-8
Water output l/min | l/h9 | 540
Admissible overpressure bar | MPa90 | 9
Motor speed Rpm1400
Connection V | ~ | Hz | A230 | 1 | 50 | 7.5
Power intake | Power output kW1.6 | 1.0
Power supply cable m5
Dimensions L x W x H mm470 | 230 | 320
Weight kg24


ราคา

ปกติ

41,000.-

ลด

33,400.-
